ASR1002-HX

Description

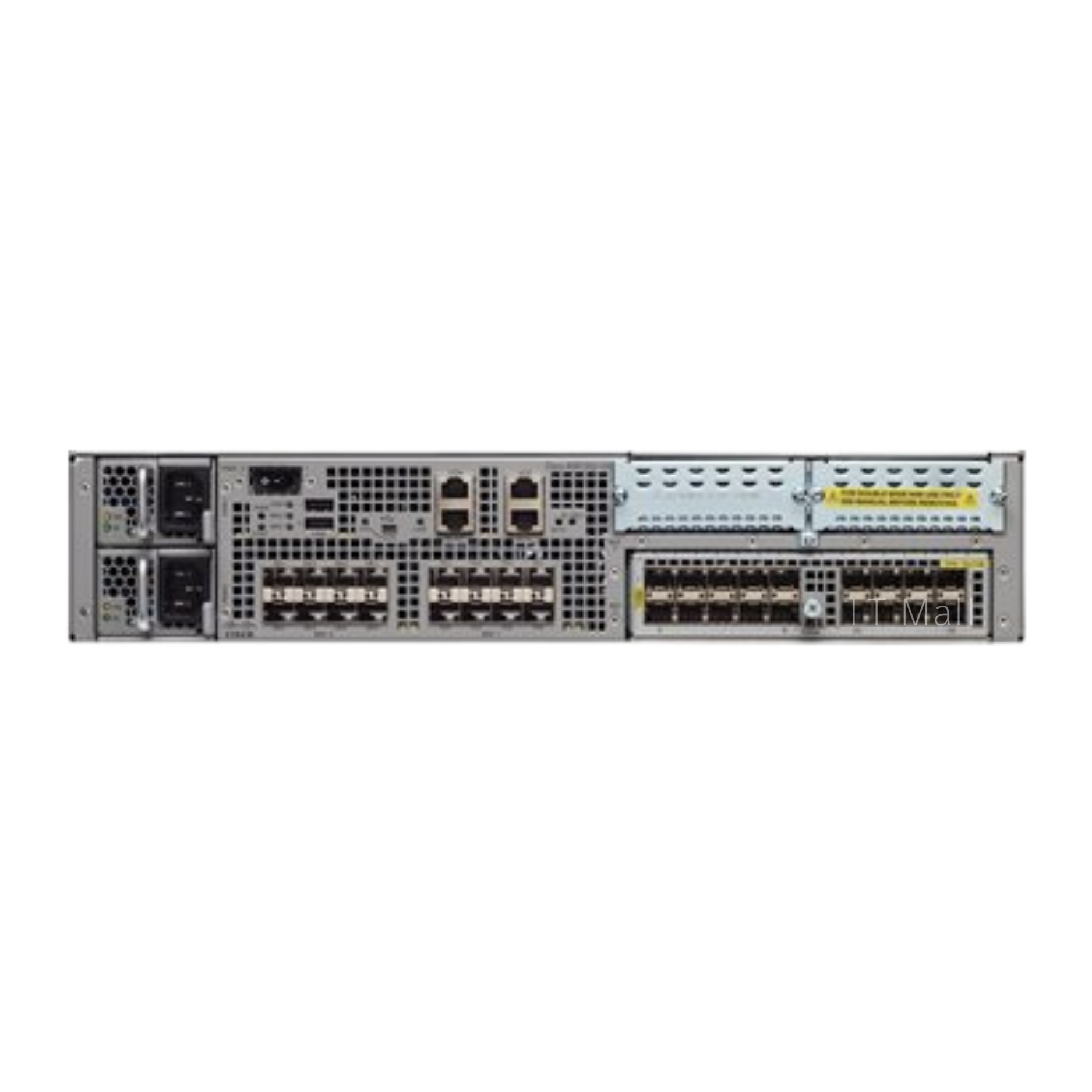

The Cisco ASR1002-HX is a high-performance fixed-configuration Aggregation Services Router from the Cisco ASR 1000 Series, delivering 4x10GE + 4x1GE interfaces, dual power supplies, and optional crypto capabilities. It addresses stringent route-processing requirements for carrier-grade IP and MPLS packet network infrastructures. The integrated route processor serves as the central control unit, running Cisco IOS XE Software, providing advanced routing, and managing chassis components.

Key Architecture and Capabilities

• Advanced routing services with component monitoring and management in a fixed form factor.
• Supports full range of Cisco IOS XE features including QoS, MPLS, L2VPN, L3VPN, Application Visibility and Control, Performance Routing (PfR), AppNav, Data Center Interconnect, Crypto, IPv6.
• Optional redundant-processor and dual IOS XE support for enhanced resiliency.
• HDD or SSD optional for code storage, boot, configuration, logs.
• USB ports for 1-GB compact flash; built-in eUSB/eMMC flash: 8 GB partitioned (1 GB bootflash, 7 GB mass storage).
• Field-replaceable hot-swappable components where applicable; integrated RP not upgradable on fixed chassis like ASR1002-HX.
• Stratum-3 clock circuitry, BITS input/output support.
• Memory scalability up to 16 GB DRAM.

The route processor builds and distributes forwarding information to the Embedded Services Processor (ESP), implements SBC setup/teardown, stateful firewall policies, IPsec negotiation. As management processor, it loads OS images to line cards, synchronizes state for redundancy, performs high-availability failover, provides console/auxiliary/USB/Ethernet ports, monitors power/temperature.

Processor and Services Integration

Powered by Cisco QuantumFlow Processor (QFP) for high-performance forwarding, integrated QoS, advanced memory management, service programmability. Supports Cisco IOS Software redundancy, ISSU, NSF with appropriate memory.

Route Processor Features

• Single copper RJ-45 10/100/1000 management Ethernet port built into chassis.
• SDRAM up to 16 GB with DIMM slots.
• HDD/SSD/eUSB for storage; USB supports 1-GB compact flash.
• Built-in console and auxiliary ports.
• Performance scalability: up to millions of IPv4/IPv6 routes, BGP RR scalability depending on memory.
• High availability: 1+1 redundancy, OIR, NSF/SSO, ISSU.
• Network management: Telnet/SSH/CLI, SNMP, RFC 2665, RFC 2737 MIBs compliant.

LED indicators for power, status, active/standby, alarms (critical/major/minor), link/activity, disk/bootflash/HDD activity, BITS carrier.

Environmental and Physical Resilience

Designed for demanding environments with specified operating/storage temperatures, humidity, altitude ranges. Meets extensive safety, EMC, immunity, NEBS (GR-1089-CORE, GR-63-CORE), ETSI standards.
